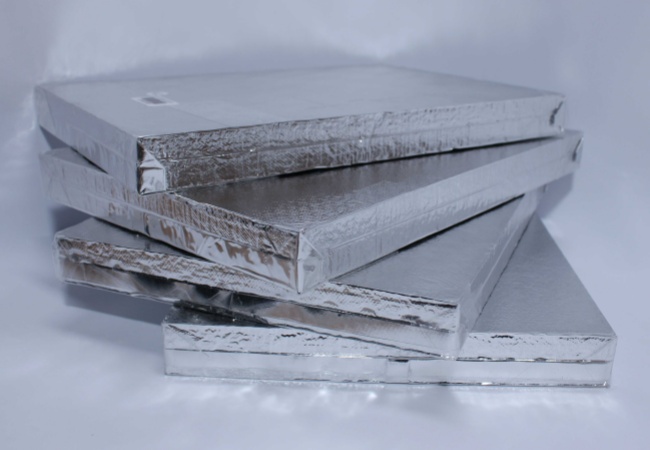

Microporous VIP(Vacuum Insulation Panel) Core
Microporous VIP(Vacuum Insulation Panel) Core offers space-efficient, low-conductivity thermal management for applications like refrigeration and construction, with customizable cutting and optional fabric wrapping for easy handling and reduced dust.
- Saves space with its compact design
- Ensures uniform temperature distribution
- Provides thermal insulation up to 10 times more effective than traditional materials
What is Microporous VIP(Vacuum Insulation Panel) Core？
Microporous VIP(Vacuum Insulation Panel) Core is a high-performance insulation solution designed for space-efficient thermal management in various applications, from refrigeration units to construction. This Vacuum Insulation Panel(VIP) core utilizes a blend of microporous materials with low density, achieving minimal thermal conductivity for maximum insulation efficiency. The core is easily integrated into various processes, thanks to optional custom cutting and the possibility of non-woven fabric wrapping, which reduces dust during the evacuation process and simplifies handling.

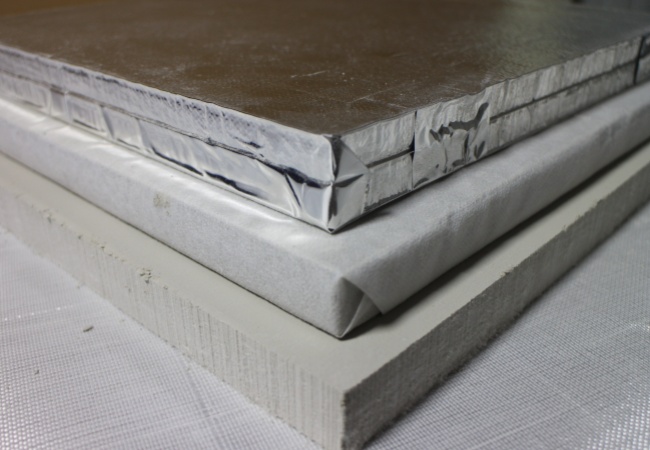

Microporous VIP(Vacuum Insulation Panel) Core is precision-cut to desired dimensions, offering a neat right-angled edge appearance. However, the cutting process limits the reduction of core density.

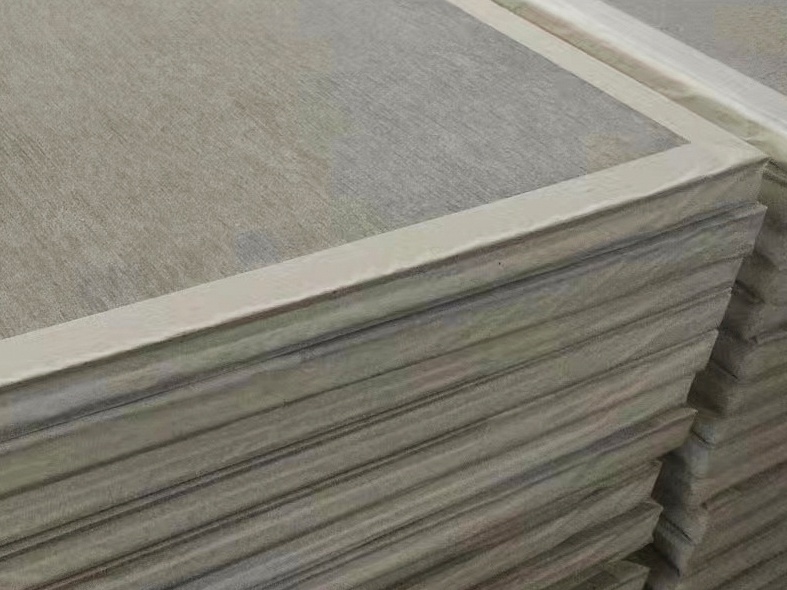

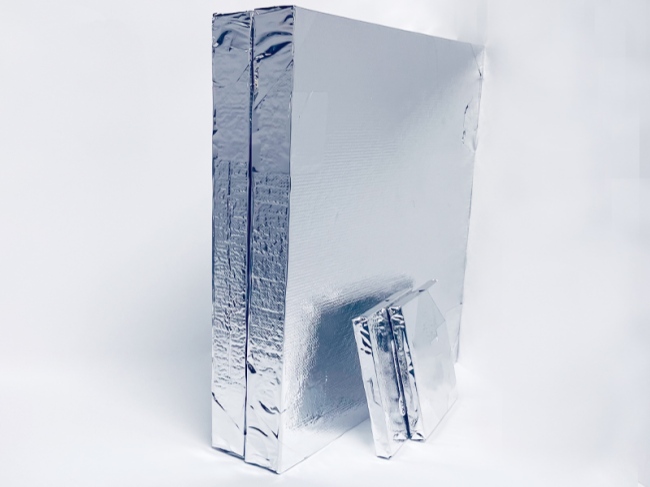

Microporous VIP(Vacuum Insulation Panel) Core Light is encased in custom-sized non-woven fabric bags and molded to size without cutting, allowing for lower densities and improved integrity. This process results in lower thermal conductivity after vacuum sealing, offering cost efficiency with a slightly less sharp appearance due to its rounded edges.
Product
Microporous Vacuum Insulation Panel Core is a space-saving, high-efficiency insulation solution with ultra-low thermal conductivity, ideal for applications like refrigeration and construction.
Microporous Vacuum Insulation Panel Core is precision-cut to specified dimensions, ensuring a clean, right-angled edge…
Microporous Vacuum Insulation Panel Core Light comes in custom non-woven fabric bags, molded to size without….
Zhengzhou Firebird New Material Co., Ltd
Key Advantages and Features of Vacuum Insulation Panel(VIP) Core
- Exceptional Thermal Efficiency: Ultra-low thermal conductivity for maximum insulation, suitable for compact spaces.
- Versatile Application: Ideal for various industries, from refrigeration to construction.
- Customizable Dimensions: Precision-cut options with clean edges or molded to size for lower density.
- Enhanced Durability: Encased in non-woven fabric for reduced dust and easy handling.
- Cost-Effective: The MIP-VIP Core Light offers economical thermal management with lower density and rounded edges, reducing costs.
Applications of Vacuum Insulation Panel(VIP) Core
- Refrigeration: Effective for both residential and commercial refrigeration units, including freezers and coolers.
- Portable Containers: Maintains consistent temperatures in portable storage and medical transport containers.
- Cold Chain Storage: Ideal for temperature-controlled packaging, such as thermal packaging for pharmaceuticals.
- Appliances: Enhances insulation in devices like water boilers.
- Automotive & Aerospace: Applied in trains, ships, and aircraft for efficient thermal insulation.
- Building Insulation: Used for facades, walls, floors, roofs, doors, windows, and cold storage facilities.
What makes Microporous Board Thermal Conductivity Lower Than Still Air?
Microporous insulation products leverage their unique nanoporous structure and the synergistic effects of various additives to remarkably inhibit heat transfer through conduction, convection, and radiation across a wide range of temperatures. This superior performance positions them ahead of traditional insulation materials such as mineral wool, perlite, insulating bricks, calcium silicate, and ceramic fibers, as well as aerogel felts. Notably, in most temperature ranges, the thermal conductivity of microporous insulation products is lower than that of static air.
Key features and benefits of microporous insulation materials include:
- Nanoscopic Structure: The small particle size reduces contact area, significantly decreasing heat transfer via conduction.
- Nanoporous Composition: Pore diameters around 20nm effectively trap gas molecules, virtually eliminating internal convection.
- Anti-Infrared Properties: Incorporation of anti-infrared powders blocks and reflects infrared radiation, especially effective at high temperatures, further reducing heat transfer.
These combined properties make microporous materials exceptionally efficient for thermal insulation, offering unparalleled performance across various industrial and high-temperature applications.
- Technical Parameters

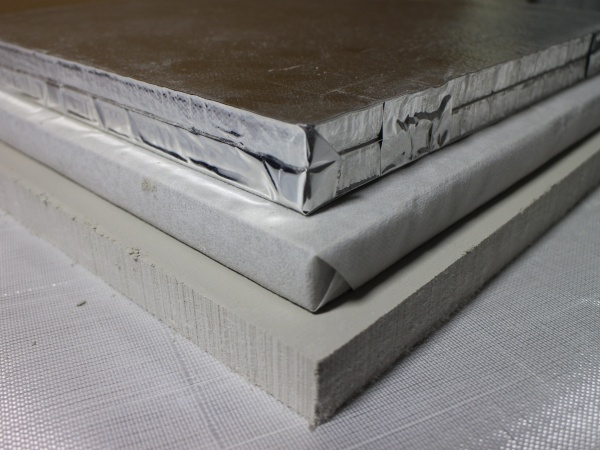

- Photo Gallery
| Grade | Unit | MIP-VIP Core | MIP-VIP Core Light | |
| Bare Board Color | Grey | Grey | ||
| Covering Material | Non-woven Fabric | Non-woven Fabric | ||
| Nominal Density | kg/cm3 | 160-220 | 110-170 | |
| (customizable) | (customizable) | |||
| Cold Compression Strength (10% deformation) | MPa | ≥0.15 | ≥0.10 | |
| Thermal Conductivity (Bare core) | W/m.K | ≤0.0200 @ Ambient pressure | ≤0.0200 @ Ambient pressure | |
| 0.0045 @ 10℃ | 0.0038 @ 10℃ | |||
| Temperature Stability | ℃ | ’-70~120 | -70~120 | |
| Main Composition | SiO2 SiC | SiO2 SiC | ||
| Thermal Shock Resistance | Unaffected by thermal shocks within specified temperature ranges. | |||
| Standard Sizes | L* W: | mm | 600*400 | |
| Thickness: | 5-50mm | |||
| Other sizes | Customizable (based on area and thickness). | |||
| Dimension Tolerance | L* W: | mm | ±2mm | |
| Thickness: | ±1mm | |||
